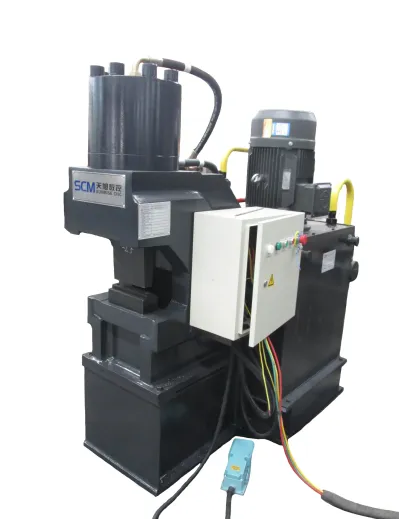

TDZ Series Hydraulic Marking Machine
Applicable Industry:
Used for marking of angles and metal plates in the field of steel tower industry.
1. The equipment possesses independent hydraulic power system and electric controlling system.
2. The hydraulic system uses the electromagnetic valve to reverse.
| Model | TDZ80 | TDZ100 | |
| Marking force(kN) | 800 | 1000 | |
| Qty. of character group | 1 | ||
| Qty. of character | 12 | 15 | |
| Character size | 14x10x19 | ||
| Working stroke(mm) | 20-25 | ||
| Times of stroke(min-1) | 20-25 | ||
| Motor power(kW) | 11 | 15 | |
| Weight of machine(Kg) | 900 | 1100 | |
